111 - cylinder head & rocker cover (engine) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1998 - ... grade FX2 transmission MT (manual transmission )

---

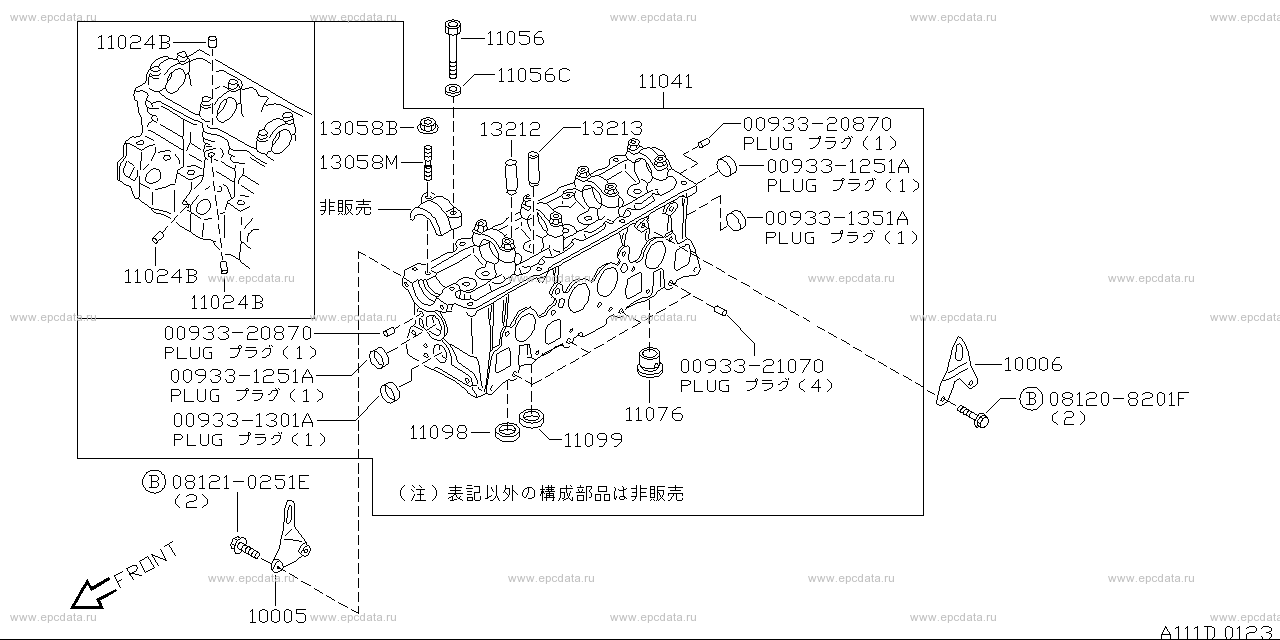

Applies for models	Manufacture period	Spec
CD20ET	01.1997 - 01.1998	シリンダーヘッド 構成
CD20ET	01.1998 - ...	シリンダーヘッド 構成

Open full screen picture Up to the top

009331251A 009331301A 009331351A 0093320870 0093321070 081208201F 081210251E 10005 - slinger, engine 10006 - slinger, engine 11024B - plug, taper 11041 - head assembly, cylinder 11056 - bolt, cylinder head 11056C - washer, plain 11076 - chamber assembly, combustion 11098 - seat, valve intake 11099 - seat, valve exhaust 13058B - nut 13058M - stud, camshaft bracket 13212 - guide, valve intake 13213 - guide, valve exhaust

---

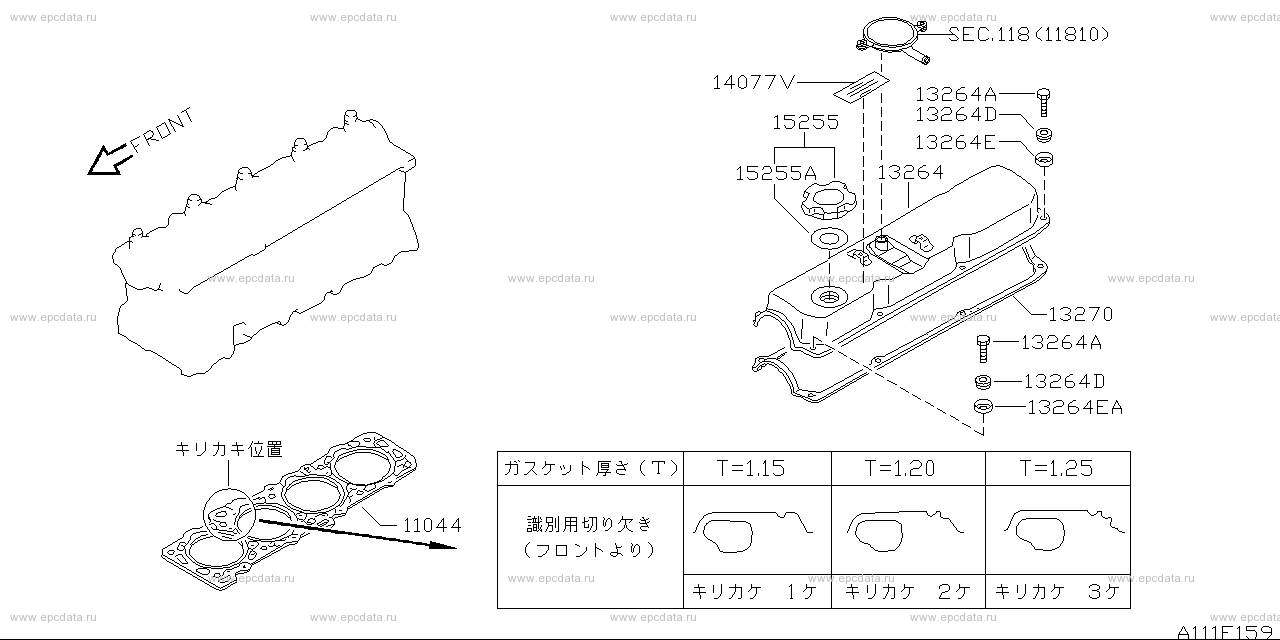

Applies for models	Manufacture period	Spec
CD20ET	01.1997 - 01.1998	ロッカー カバー
CD20ET	01.1998 - ...	ロッカー カバー

Open full screen picture Up to the top

11044 - gasket, cylinder head 13264 - cover assembly, valve rocker 13264A - bolt, rocker cover 13264D - washer 13264E - tray, rocker cover washer 13264EA - tray, rocker cover washer 13270 - gasket, rocker cover 14077V - label, oil caution 15255 - cap assembly, oil filler 15255A - packing, oil filler cap

Vanette Serena KVC23
